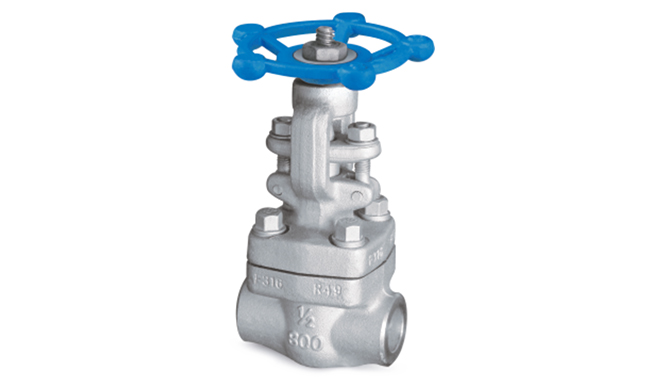

GA Series
●Size: 1/4"。2"78 50 mm)
●Class: 150～2500
Specifications
●Design: ANSI B16.34,API 602
●Testing: ANSI B16.34 and API 598
●Marking: MSS-SP-25
●Socket weld ends: ASME B16.11
●Butt weld ends: ASME B16.25
●Threaded ends: ASME B1.20.1
●Flanged: ASME B16.5
Features
●Three types of bonnet designs:
*Bolted Bonnet,OutsideScrew and Yoke (Class 150 to Class 1500 Stronger and leakproof body bonnet encasesfull a spiral wound gasket.
*Welded Bonnet,Outside Screw and Yoke (Class 150 to Class 1500)For welded bonet valves,the bonnet isthreaded in and torqued to an engineered torque value and the body bonnet joint is strength-welded,offering double protection against leakage.(body bonet threadsand strength-weld).
*PresureSeal Bonnet,Outside Screw and Yoke(Class 1500 toClass 2500 Pressureseal bonnet,the body bonet joint is threaded,packingring sare compressed to provide a high integrity seal by the drawing-in stud.
●Seating faces ground and lapped to 2 RMS.
●Fully guided wedge reduces wear onseatng surfaces.
●Backseat bevel on the stem,not on the disc,meet specificationsAPl-600 and APl-602.
●Packing chamber burnished and combination graphiterings individully prestressed for tight seal.
●Removal of handwheel without affecting the position of valve (closed or open).
●A compact but extremely sturdy design for highpressure-temperature service. andwhe surethegrip even when wearinggloves. ugged and knobbe.
●Optional handwheel colors are available
